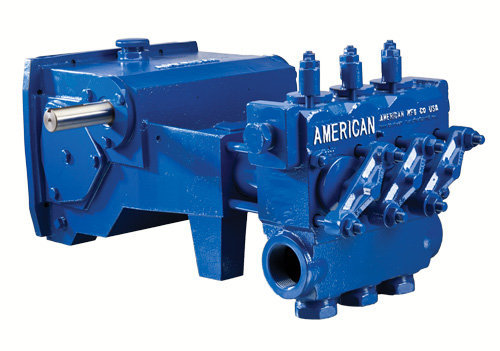

Pump Model

• AL1122


Configuration

• Horizontal Triplex Piston


Number of Pistons

• 3


Stroke Length

• 2.75 Inches (69.9 mm)


Frame Load Rating

• 6000 lbs. (2,721 kg)


Pump Weight

• 460 lbs. (197 kg)


Direction of Rotation

• Top of Shaft away from head


Internal Gear Rotation

• 3.6:1


Intermittent Duty Speed Rating

• 1,275 RPM (Jackshaft)


Continuous Duty Speed Rating

• 900 RPM (Jackshaft)


Ball Valve Max Speed Rating

• 690 RPM (Jackshaft)


Minimum Speed

• 360 RPM


Mechanical Efficiency

• 85%


Lubrication System

• Splash, Gravity Return


Lube Oil Capacity

• 1 Gallon

Lube Oil Type

• SAE 30

Maximum Fluid Temperature

• 140F (250 Capability)


Minimum Fluid Temperature

• 0F (-20 Capability)


Standard Suction Size

• 2.50 Inch NPT (63.5 mm)


Standard Discharge Size

• 1.25 Inch NPT (31.8 mm)


Fluid End Material

• Ductile Iron


Valve Type

• Disc Valves/Ball Valves


Hydraulic Motor Mount

• SAE C - 4 Bolt with 1.25"-14T
